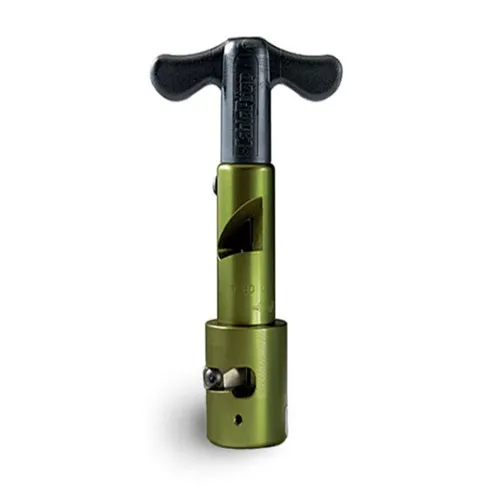

Note: The image is only for reference; it has a replacement tool blade.
Description
The SCT-QR RSCT-7MMQR is a precision-engineered tool designed to facilitate the efficient and safe preparation of cables. Whether you're a professional in telecommunications, cable TV installations, or any related field, this tool is crafted to meet the demands of modern cable preparations. SCT-QR stripping/coring tools strip back and bevel the outer conductor, core the dielectric, and strip back the outer jacket on CommScope Quantum Reach (QR) cables.
Features
Three Functions in One Operation: SCT-QR tools speed connectorization by stripping back and bevelling the outer conductor and core the dielectric in one smooth operation.
Non-clogging Stops: Every SCT-QR tool has a non-clogging internal stop that is factory-set to the cable's required dimension.
Patented Stripping/Coring Blades: The bevel on the coring edge of the blade self-aligns on the center conductor, which enables an SCT-QR tool to core cable even when it is out-of-round. Made of tool steel that is heat-treated to full hardness, the blade bevels the outer conductor, thereby eliminating O-ring damage and minimizing water migration.
Manual or Drill Operation: SCT tools can be ordered with a standard ergonomic handle or a Cable Prep brand RTH ratchet T-handle. Either handle can be removed for operation with a 3/8-inch variable speed drill.
Attached Jacket Stripping Tool: Because the jacket on the QR cable must be stripped after the coring operation, each SCT-QR stripping/coring tool (labeled SCT-QR-A) comes with a special jacket stripping tool (labeled SCT-QR-B). The two pieces are threaded, so they can be assembled and stored as one unit, which protects the insides of the parts from damage. The jacket stripper is designed with a patented mandrel pin that supports the soft aluminum outer conductor and keeps it from being damaged during the jacket stripping operation.
Applications
SCT-QR Hardline stripping & coring tools strip back and bevel the outer conductor, core the dielectric, and strip back the outer jacket on CommScope Quantum Reach (QR) cables. SCT-QR Hardline stripping & coring tools work on 0.7MM through 1.125mm CommScope Quantum Reach (QR) cables.
Note that, because the jacket must be stripped after coring, SCT tools for QR applications include a special, integrated jacket stripper made especially for this purpose.
Specification
Type: Replacement blade for SCT/QR Coring and Stripping Tools
CommScope Quantum Reach: .320
Part Number: SC-F320QR
