The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.
There are two versions of the D400 product. The standard D400 has an Aviom A-Net input, perfect for using with Aviom's analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.
The D400 and D400-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.
Connecting to Analog or Digital Consoles
For personal mixing systems that use one or more analog input modules (AN-16/i v.2, AN-16/i-M, or legacy AN-16/i) or an A-Net console card (such as the Y1 A-Net Card for Yamaha digital consoles), use the standard D400 with the Aviom A-Net input.

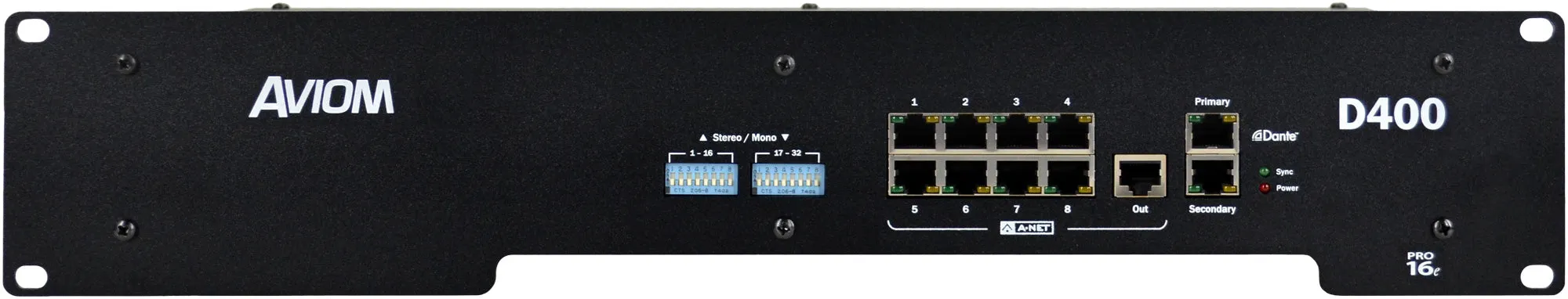

With one Pro16 A-Net In and eight powered A-Net Outs, you can provide power and audio for up to eight Aviom Personal Mixers. And the D400 includes an unpowered A-Net Out as well, perfect for connecting additional A-Net Distributors for systems with more than eight Personal Mixers.
Specifications
| A-Net Out to Personal Mixers | Eight RJ45 connectors, powered; Compatible with A640, A360, A320, and A-16II Personal Mixers |
|---|---|
| A-Net Out | Pro16e A-Net; RJ45 connector, unpowered Supports system expansion and the A-16II, A320, and A360 Personal Mixers |
| LEDs | Power On (red); Network Sync (green) |
| Stereo Link | Two 8-position DIP switch blocks (1-16, 17-32) |
| Output Voltage for Personal Mixers | 24VDC, 0.5 amp; Transmitted over the Cat-5e cable |
| A-Net Cables | Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all other network connections |

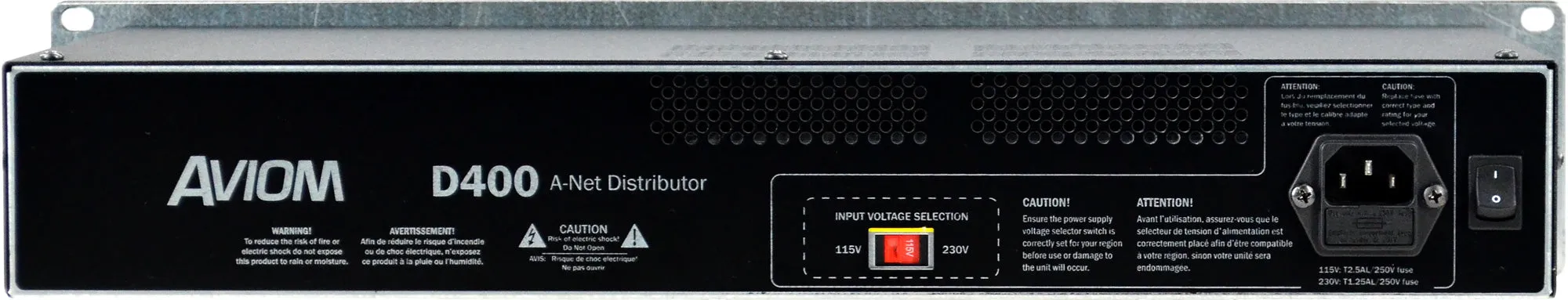

| Power Supply | Internal, IEC connector |
| Input Voltage | 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max |
| AC Fuse Types | 115V range: T2.5AL/250V, slow-acting 230V range: T1.25AL/250V; slow-acting |
| Dimensions | 19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high |
| Weight |
12.0 lbs (5.44 kg) |
| A-Net Input | Pro16e Aviom A-Net; RJ45 connector |
|---|---|
| A-Net Offset Base Slot | 3-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49) |
