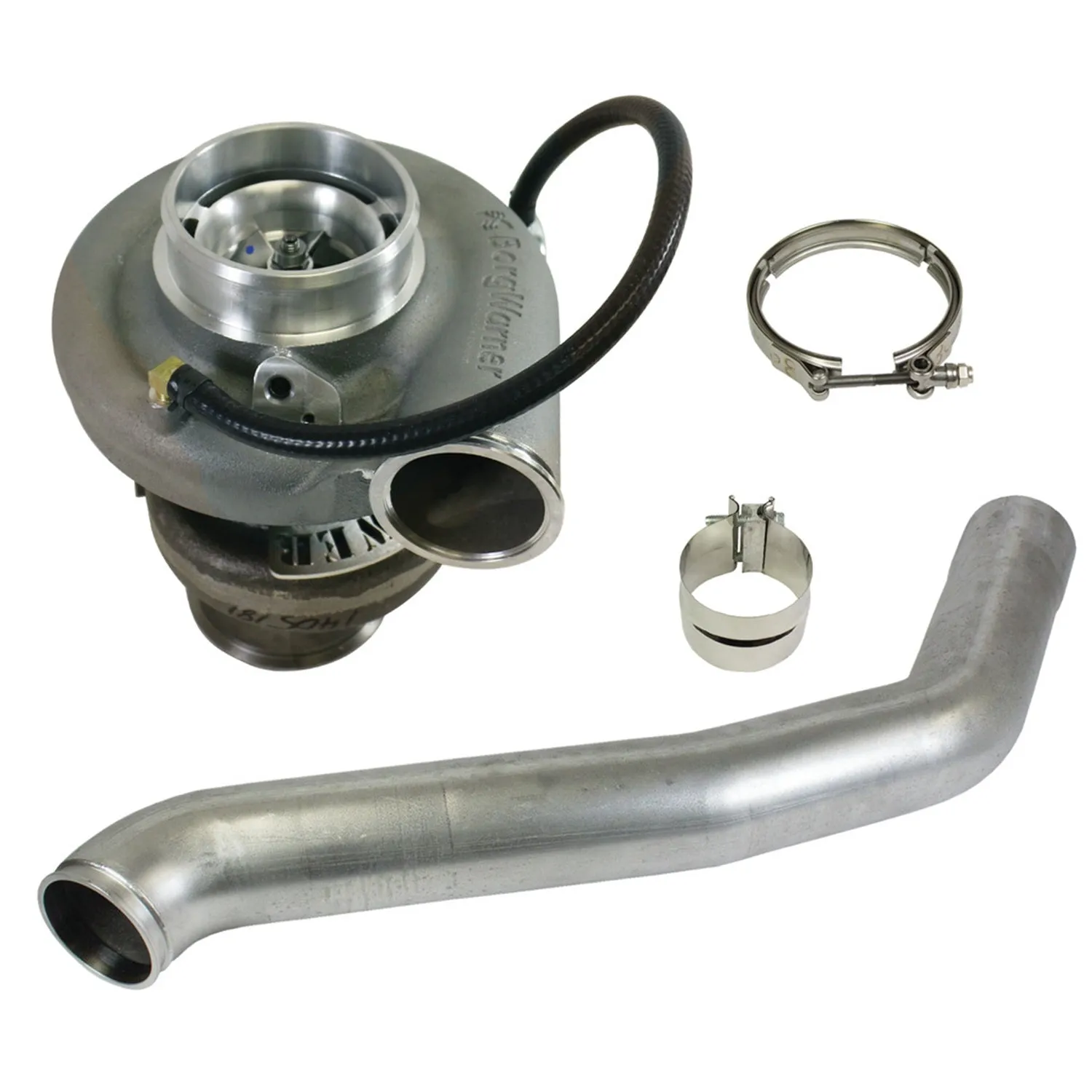

The Super B Special bridges the performance gap between the Super B turbo and the Super B twin system. Flowing an amazing 80 lbs. of air per minute (compared to 61 lbs./minute for the Super B), the Super B Special is perfect for late-model Cummins common-rail or modified 12-valve engines and can deliver enough air for 375-525 rear wheel horsepower on diesel only. Add the larger BD Cool-It Intercooler and a shot of nitrous oxide, and the Super B Special will produce even higher power levels with adequate fuel delivery. This turbo kit comes complete with exhaust down pipe, clamps and adjustable waste gate.

Specifications:

Description_DEF	Turbocharger Kit
Description_DES	Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L
Description_DES	Super B Special Turbo Kit
Description_EXT	Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L
Description_EXT	Super B Special Turbo Kit; SX-E S363; A/R Ration 0.80; Incl. Killer B Single Turbo/Downpipe V-Band Clamp/4 in. Stainless Steel Clamp/4 in. Downpipe/Oil Drain Gasket;
Description_FAB	A/R Ratio: 0.80
Description_FAB	A/R Ration 0.80; Flow 79 Lb/Minute
Description_FAB	Approx. Rated 550 hp - Depends On Truck Config
Description_FAB	Approximate rated 550hp (depending on truck configuration)
Description_FAB	BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
Description_FAB	BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
Description_FAB	BD's HD Waste gate and bracket holds boost and prevents over speed damage
Description_FAB	Comp Wheel 63 mm-2.48 in. Turbine Wheel 76 mm-2.99 in.
Description_FAB	Comp Wheel: 63mm 2.48in
Description_FAB	Designed For Perf. w/360 Thrust Bearings/Comp. Wheel And Housing
Description_FAB	Easy Complete Bolt-On Performance Replacement For Your OEM Turbo
Description_FAB	Exclusive Feature Of Heavy Sprung Wastegate T3 Turbine Housing
Description_FAB	Flow: 79 Lb/min
Description_FAB	HD Wastegate/Bracket Holds Boost And Prevents Over Speed Damage
Description_FAB	High Strength FMW Forged Milled Wheels Are Lighter And Stronger
Description_FAB	Kit comes with downpipe, V-band clamp, band clamp
Description_FAB	Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
Description_FAB	Larger Compressor Blade Surface w/Smaller Inducer
Description_FAB	The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
Description_FAB	The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
Description_FAB	Turbine Wheel: 80mm 3.15in
Description_FAB	Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
Description_FAB	Turnbuckle Boost Control For Ease Of Adjustment/Extreme Tuning
Description_INV	TURBO SPECIAL B SX-E DODGE 1994-2002 5.9
Description_LAB	Proposition 65
Description_MKT	All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.
Description_MKT	The Super B Special bridges the performance gap between the Super B turbo and the Super B twin system. Flowing an amazing 80 lbs. of air per minute (compared to 61 lbs./minute for the Super B), the Super B Special is perfect for late-model Cummins common-rail or modified 12-valve engines and can deliver enough air for 375-525 rear wheel horsepower on diesel only. Add the larger BD Cool-It Intercooler and a shot of nitrous oxide, and the Super B Special will produce even higher power levels with adequate fuel delivery. This turbo kit comes complete with exhaust down pipe, clamps and adjustable waste gate.
Description_SHO	TURBO SPECIAL B SX-E
Description_SHO	Turbocharger Kit
Engine	5.9L Cummins 98.5-02 24-Valve
height	14.0
length	64.0
LTL	N
Make	Dodge
Prop 65 (C, R or CR)	CR
Prop 65 - Short Label	bddiesel_prop65_warning.png
Prop 65 Warning	WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Prop 65 Yes/No	Yes
Title	Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L
weight	54.0
width	14.0
