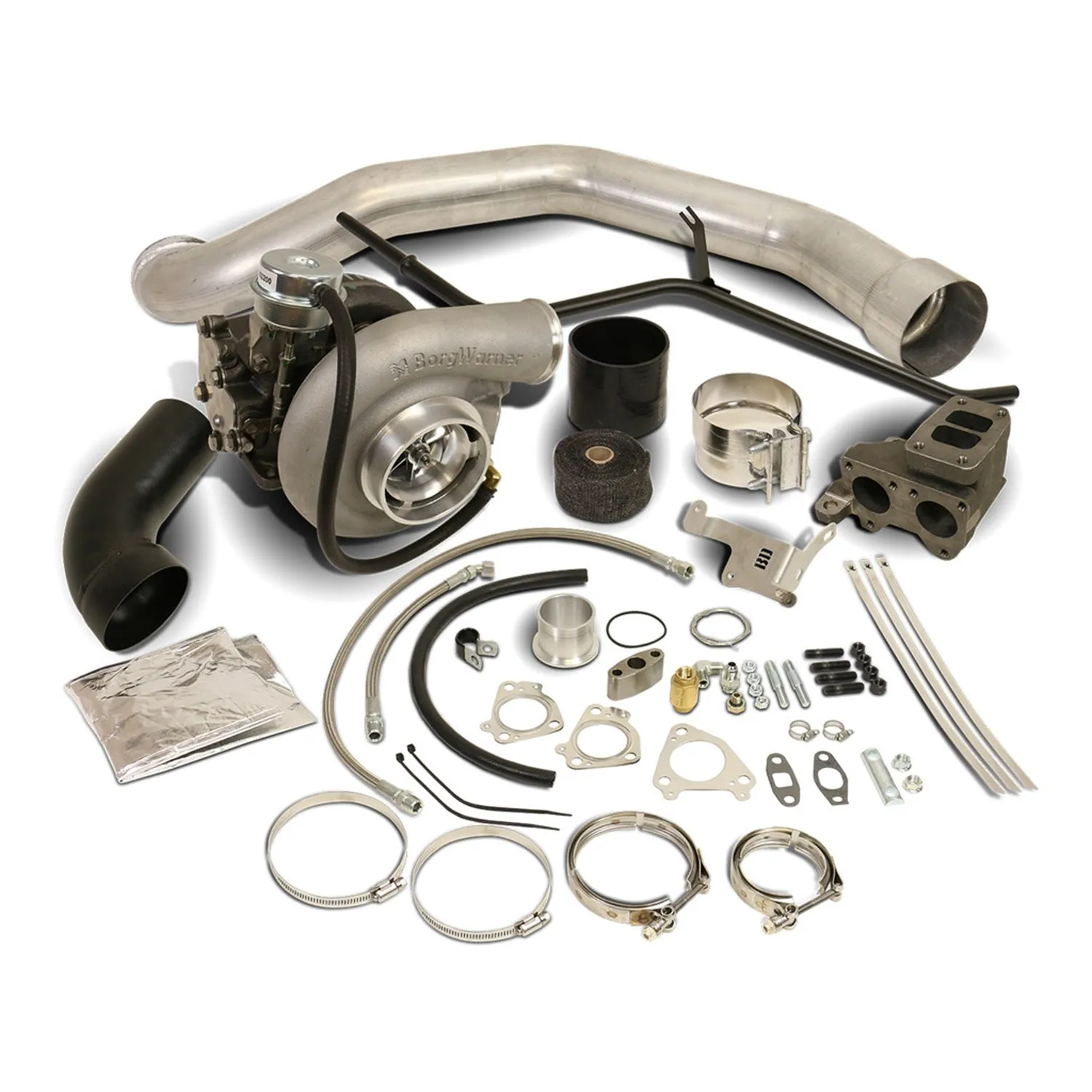

Take your LB7 Duramax to the next level with BD's SuperMax SX-E turbo systems. Using BorgWarner SX-E cartridges and BD housings, the SuperMax creates enough airflow for more power, response and reliability. The SX-E was designed for performance with a 360 thrust bearing and the larger compressor blade surface of the high strength Forged Milled Wheels (FMW). New technology allows the smaller inducer to flow more and spool faster. BD exclusive adjustable waste-gated T3 turbine housing with heavy duty waste gate and bracket holds the boost, and, prevents over speed damage.

Specifications:

Description_DEF	Turbocharger Kit
Description_DES	Super Max S369 SX-E Turbo Kit - 2001-2004 Chev Duramax LB7
Description_EXT	Super Max S369 SX-E Turbo Kit - 2001-2004 Chev Duramax LB7
Description_FAB	A/R Ratio: 0.80
Description_FAB	Approximate rated 700hp (depending on truck configuration)
Description_FAB	BD exclusive feature of a heavy sprung waste-gated T3 turbine housing
Description_FAB	BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
Description_FAB	BD's HD Waste gate and bracket holds boost and prevents over speed damage
Description_FAB	Comp Wheel: 69.00mm 2.72in
Description_FAB	Flow: 98 Lb/min
Description_FAB	Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
Description_FAB	The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
Description_FAB	The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
Description_FAB	Turbine Wheel: 80mm 3.15in
Description_FAB	Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
Description_INV	SUPER MAX TURBO KIT CHEVY LB7 S369SX-E
Description_MKT	Take your LB7 Duramax to the next level with BD's SuperMax SX-E turbo systems. Using BorgWarner SX-E cartridges and BD housings, the SuperMax creates enough airflow for more power, response and reliability. The SX-E was designed for performance with a 360 thrust bearing and the larger compressor blade surface of the high strength Forged Milled Wheels (FMW). New technology allows the smaller inducer to flow more and spool faster. BD exclusive adjustable waste-gated T3 turbine housing with heavy duty waste gate and bracket holds the boost, and, prevents over speed damage.
Description_SHO	SUPER MAX TURBO KIT
height	12.0
length	64.0
weight	69.0
width	12.0
