ProductDescription

• Key Features

• 2MP 1/2.8Inch CMOS image sensor, low luminance, and high definition image

• H.265 codec, high compression rate, ultra-lowbitrate

• Outputs max. 2MP (1920 × 1080)@25/30 fps

• Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal access

• Supports maximum 256GB SD card

• Built-in IR LED, and the max. illumination distance is 40m

• 12V DC/PoE power support

• IP67

• Series Overview

• With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/
  residences, small-sized retail stores, and other small and medium-sized enterprises

• Functions

• Smart H.265 & Smart H.264

• With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission

• Motion Detection

• When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records

• Smart Illumination

• Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment

• According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target

• Cyber Security

• Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device

• Protection (IP67, wide voltage)

• IP67: The camera passes a series of strict test on dust and soak

• It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes

• Wide voltage: The camera allows ±30% (for some power supplies) Input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage

ProductSpecification

Brand	Dahua
Product Type	Dome Camera

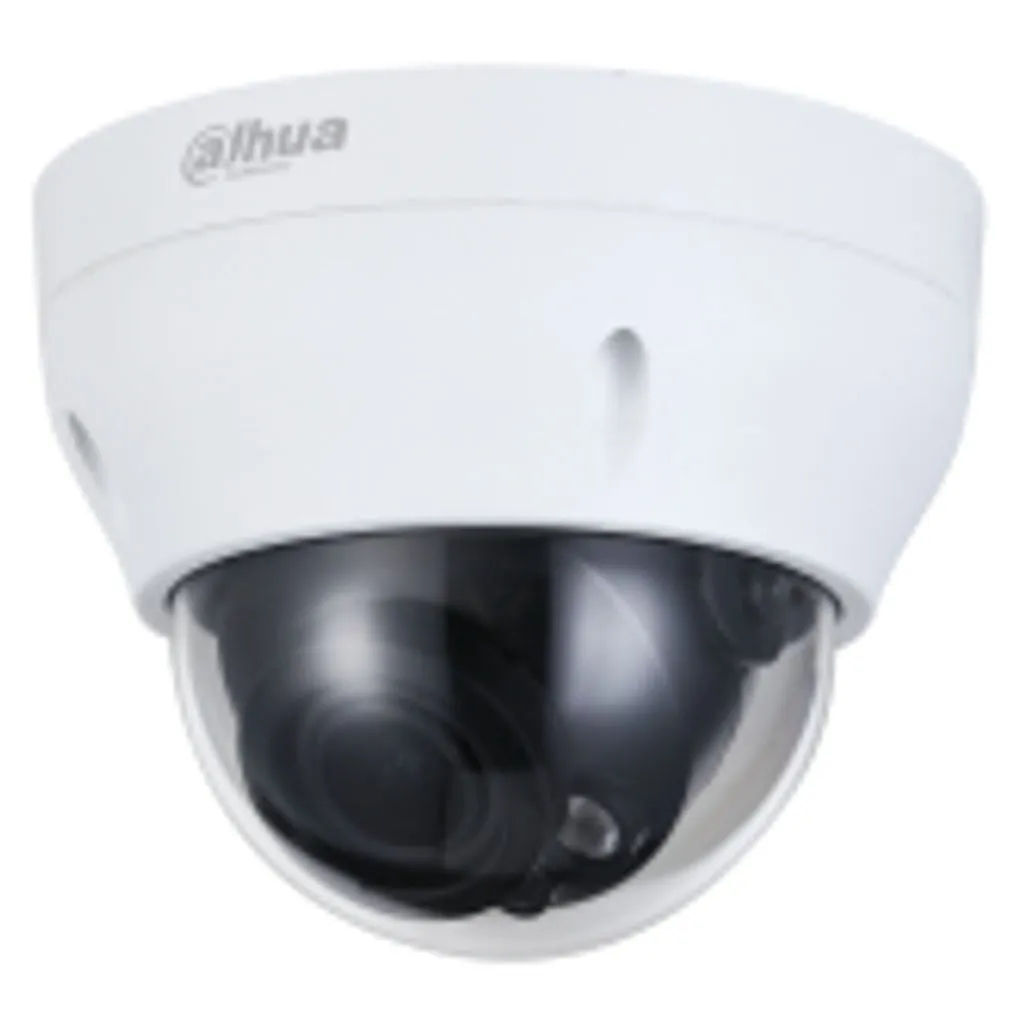

Product Model	DH-IPC-HDPW1230R1P-ZS-S4
Camera
Image Sensor	1/2.8” 2Megapixel progresive CMOS
Effective Pixels	1920(H) x1080(V)
RAM/ROM	128MB/16MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.008 [email protected] (Color, 30 IRE) 0.0008 [email protected] (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio	More than 56dB
IR Distance	40 m (131.23 ft) (IR)
IR On/Off Control	Auto/ Manual
IR LEDs	2
Lens
Lens Type	Motorized vari-focal
Mount Type	φ14
Focal Length	2.8 mm–12 mm
Maximum Aperture	F1.7
Angle Of View	Horizontal: 101°–33.5°; Vertical: 52.5°–19°; Diagonal: 125°–38.5°
Focus Control	Fixed
Close Focus Distance	0.8 m (2.6 lb)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	48 m (157.48 ft)	19 m (62.34 ft)	10 m ( 32.81 ft)	5m (16.40 ft)
	T	131 m (429.79 ft)	Dahua 2 MP Entry IR Vari-Focal Network Dome Camera DH-IPC-HDPW1230R1P-ZS-S4 Title: DefaultTitle $ 59.31 $ 45.62 Please select combo product attributes The combo subtotal is $,SAVE$ Unavailable Add to Cart Buy It Now You May Also Like $ 81.56 $ 62.74 Blinky 3 Tail Light $ 86.46 $ 66.51 FOXDOG RECON 4G TRAIL CAMERA $ 14.75 Briggs and Stratton 91871E701MA Single Blade $ 86.95 Ernie Ball CradleTune $ 85.87 $ 66.05 Formax Tabletop Document Folder FD 324 $ 85.01 $ 65.39 Square Ring Stand with Card Slot Hybrid Case for iPhone 13 Pro Max $ 62.69 $ 48.22 Rexel momentum shredder cross x308 $ 65.00 $ 43.07 Canaletto Display Cabinet Display Cabinet 2 Doors K 8 $ 98.95 COMETIC Kawasaki 800 Full Gasket Kit With Crank Seals $ 69.86 $ 53.74 Datastroyer 502 SF High Security Shredder Level 6/P-7 ＋ Home Paper Shredders ＋ Heavy-Duty Shredders Sensors ＋ Overheat Protection Sensors Accessories ＋ Shredder Bags Blade Replacement Kits Lighting ＋ Status Display Panels Error Monitoring LEDs Cart ＋ Your cart is currently empty. Total: VIEW CART
