Product Description
-
2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
-
Outputs 2MP (1920 × 1080)25/30 fps
-
H.265 coding, high compression ration, low bit rate
-
Built-in IR LED, max IR distance: 30 m
-
ROI, SMART H.264 /H.265 , flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Intelligent detection: Intrusion, tripwire
-
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
-
Supports max. 256 GB Micro SD card and built-in Mic
-
12V DC/PoE power supply
-
IP67 protection
-
Function
-
Smart H.265 & Smart H.264
-
Starlight
-
IVS
-
Cyber Security
-
Protection (IP67, wide voltage)
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Bullet Camera |
||||
|
Series |
Lite Series |
||||
|
Product Code |
DH-IPC-HFW2230SP-S-S2 |
||||
|
Camera |
|||||
|
Image Sensor |
1/2.7”2Megapixel progressive CMOS |
||||
|
Effective Pixels |
1920 (H) × 1080 (V) |
||||
|
Rom |
128 MB |
||||
|
Ram |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.005 LuxF1.6 |
||||
|
IR Distance |
30 m (98.43 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR Leds Number |
1 |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F1.6 F1.6 |
||||
|
Field Of View |
2.8 mm: Pan: 110.0° Tilt: 59.0° Diagonal: 132.0° 3.6 mm: Pan: 91.0° Tilt: 48.0° Diagonal: 109.0° |
||||
|
IRIS Type |
Fixed aperture |
||||
|
Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft) |
||||
|
Dori Distance |
|||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8 Mm |
37.3 M (122.38 Ft) |
14.9 m (48.88 ft) |
7.5 m (24.61 ft) |
3.7 m (12.14 ft) |
|
|
3.6 Mm |
53.3 M (174.87 Ft) |
21.3 m (96.88 ft) |
10.7 m (35.10 ft) |
5.3 m (17.39 ft) |
|
|
Smart Event |
|||||
|
General Ivs Analytics |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
||||

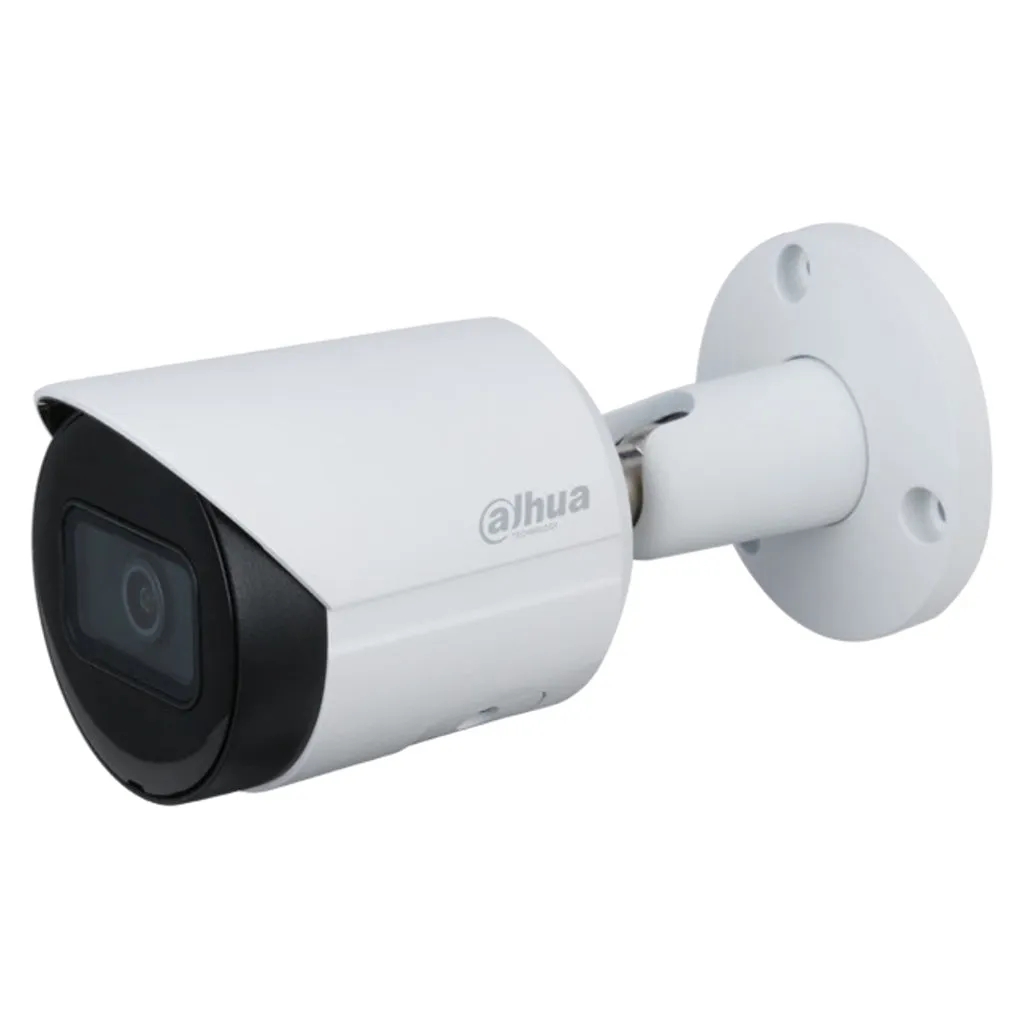

Dahua Lite Series IR Bullet Network Camera 2MP DH-IPC-HFW2230SP-S-S2$ 56.34 $ 43.34 Please select combo product attributes
