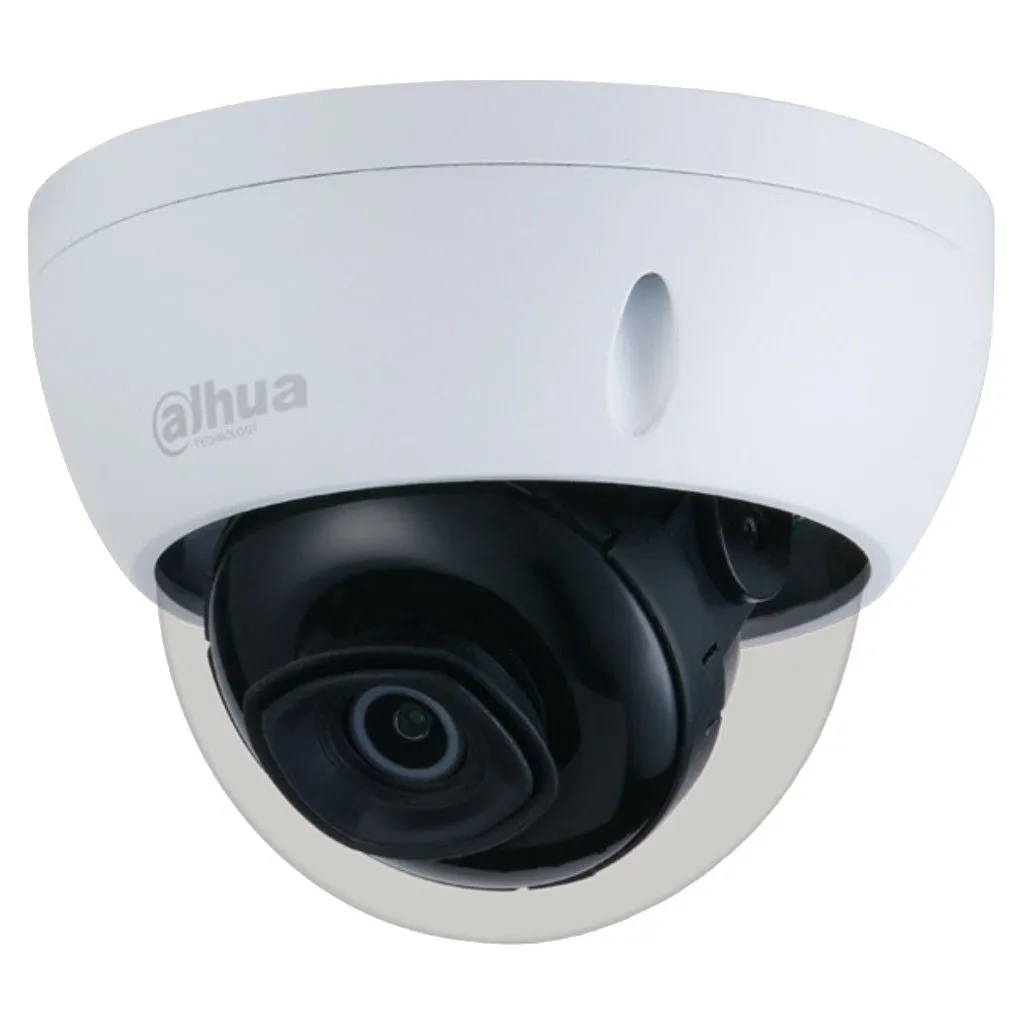

Product Description
-
4MP, 1/3” CMOS image sensor, low illuminance, high image definition
-
Outputs 4MP (2560 × 1440)25/30 fps, max. supports 4MP (2688 × 1520) 20 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max IR distance: 30 m
-
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Intelligent detection: Intrusion, tripwire
-
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
-
Supports max. 256 GB Micro SD card
-
12V DC/PoE power support
-
IP67, IK10 protection grade
-
Features
-
Smart (H.265 & H.264 )
-
Starlight
-
Wide Dynamic Range (WDR)
-
Intelligent Video Analysis (IVS)
-
Protection (IP67, IK10, wide voltage)
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Network Camera |
||||
|
Series |
Lite |
||||
|
Product Code |
DH-IPC-HDBW2431EP-S-S2 |
||||
|
Image Sensor |
|||||
|
Effective Pixels |
2688 (H) × 1520 (V) |
||||
|
Rom |
128 MB |
||||
|
Ram |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.008 Lux F1.6 |
||||
|
IR Distance |
30 m (98.43 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR Leds Number |
3 |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field Of View |
2.8 mm: Pan: 102.0° Tilt: 55.0° Diagonal: 121.0° 3.6 mm: Pan: 84.0° Tilt: 45.0° Diagonal: 100.0° |
||||
|
IRIS Type |
Fixed aperture |
||||
|
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) |
||||
|
Dori Distance |
|||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8mm |
56 M (183.73 Ft) |
22.4 m (73.49 ft) |
11.2 m (36.75 ft) |
5.6 m (19.37 ft) |
|
|
3.6mm |
80 M (262.47 Ft) |
32 m (104.99 ft) |
16 m (52.49 ft) |
8 m (26.25 ft) |
|
|
Smart Event |
|||||
|
General Ivs Analytics |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
||||
|
$
