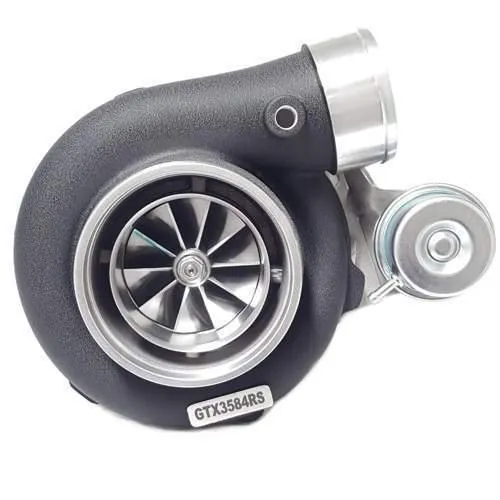

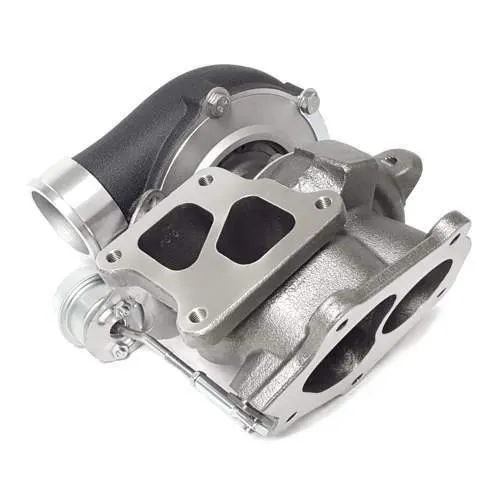

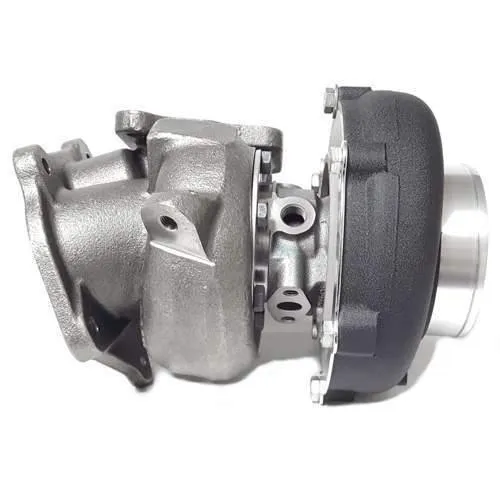

Evo X Gen2 GTX3584RS Turbo Kit - 4" In / 2.5" Out Comp. Hsg and .94 A/R Tbn. Hsg - 1000HP Rated

Garrett Gen2 GTX3584RS EVO X turbo kit with a high capacity 4" inlet and 2.5" outlet anti-surge compressor housing and a .94 A/R internally gated turbine housing.

Features

• Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
• Ultra high flow "RS" blade profile turbine wheel
• Dual ball bearing CHRA rotating assembly
• Capable of 1,000 HP
• Compressor housing has a 4" inlet ported shroud and 2.5" outlet
• .94 A/R internally gated turbine housing

This kit is NOT a direct replacement. It REQUIRES the following:

• Custom hose connection 4" intake pipe (not included)
• Custom charge pipe or 2.5" diameter outlet adapter (not included)

Applications

• 2008 - 2015 Mitsubishi Evo X*
• *Not a direct fit, see notes

Specifications

• Comp. Wheel Inducer: 67mm
• Comp. Wheel Exducer: 84mm
• Comp. Wheel Trim: 64
• Comp. Hsg: T04E Frame, .60 A/R, 4" Ported Shroud Inlet, 2.5" Outlet
• Tbn. Wheel Inducer: 68mm
• Tbn. Wheel Exducer: 62mm
• Tbn. Wheel Trim: 84

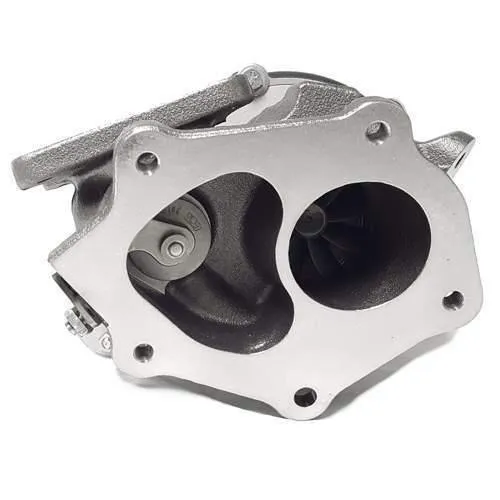

• Tbn. Hsg: .94 A/R Internally Gated

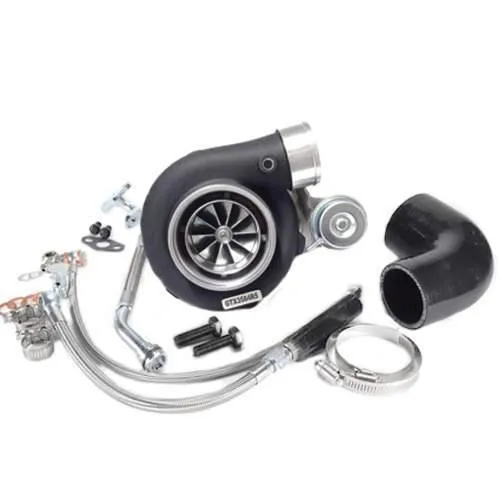

What's In The Box?

• 1 - Garrett Gen2 GTX3584RS Turbo
• 1 - Silicone Elbow
• Lines & Fittings
• Necessary Hardware

Warranty

• Manufacturer Standard Warranty
