Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1059442 |
| Body Style | Cylinder |
| Connection Type | Cable with M8 male connector, 4-pin, 0.3 m (Do not bend below 0 °C) |
| Housing Material | Aluminum, PA, strengthened |
| IP Rating | IP65 ; IP67 ; IP68 |
| Output Current | 4 mA ... 20 mA |
| Output Type | Analog, IO-Link |
| Sensing Range | ≥ 107 mm (± 1 mm) |
| Series | |
| Supply Voltage | 15 V DC ... 30 V DC |
| Type | Magnetic, Analog Positioning |
Overview

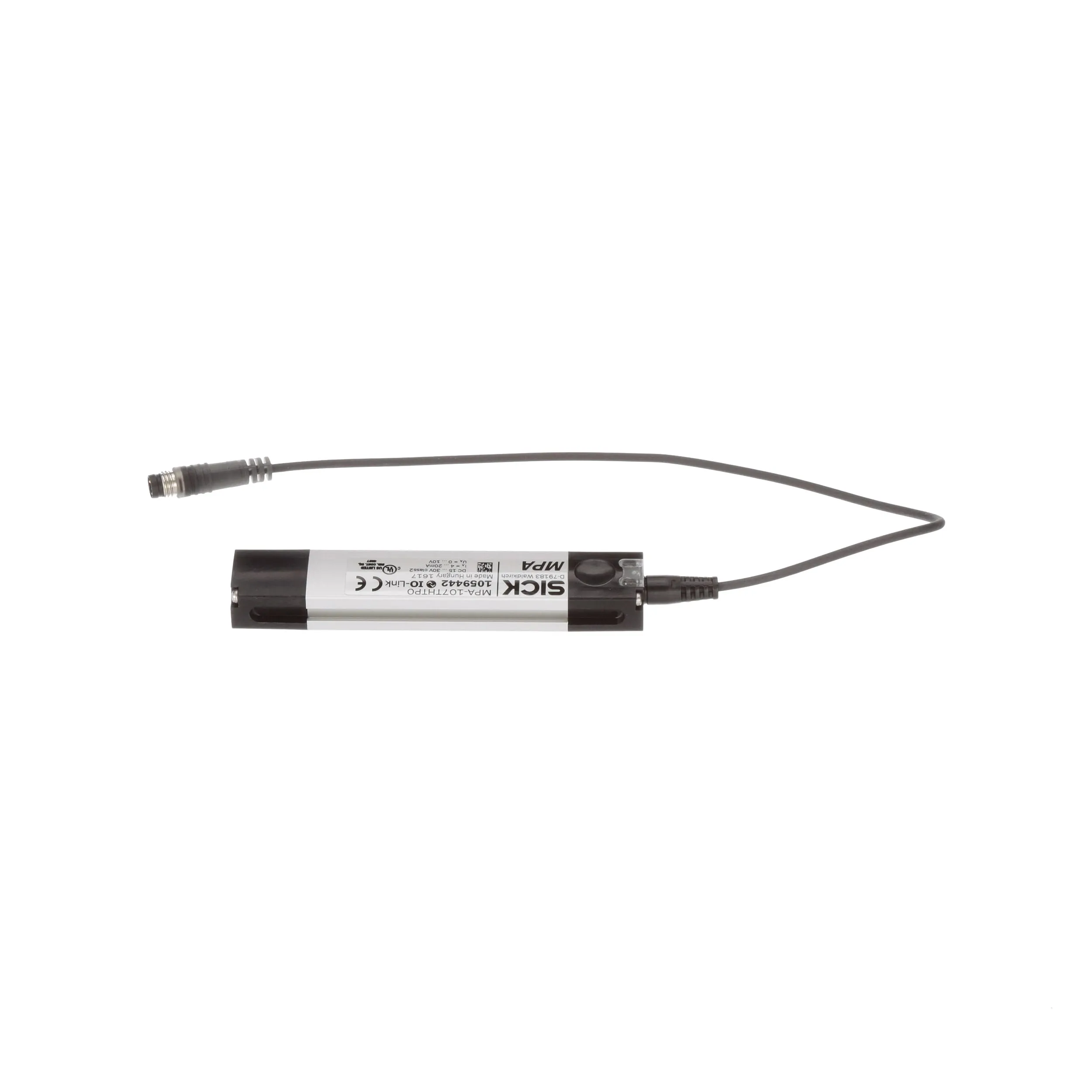

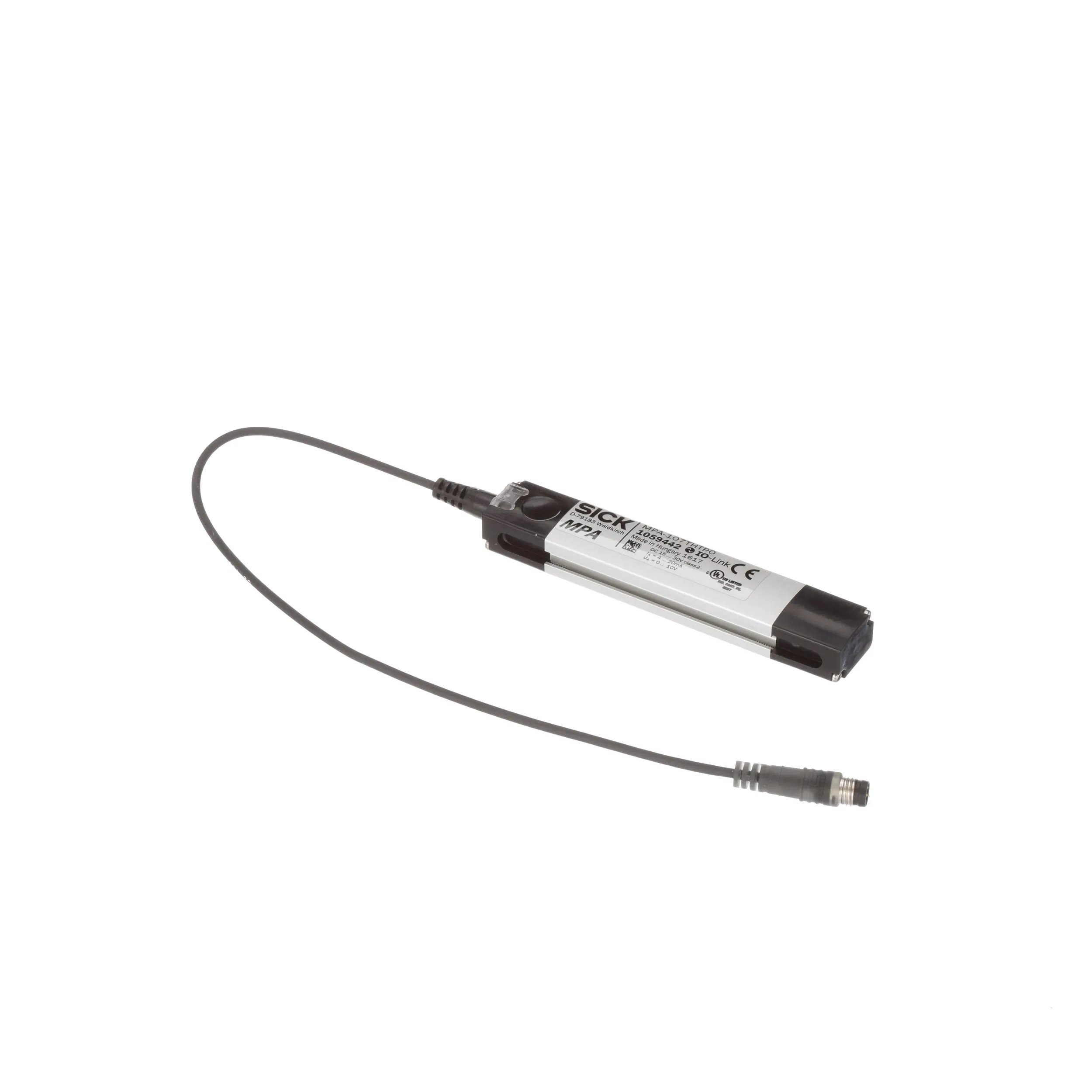

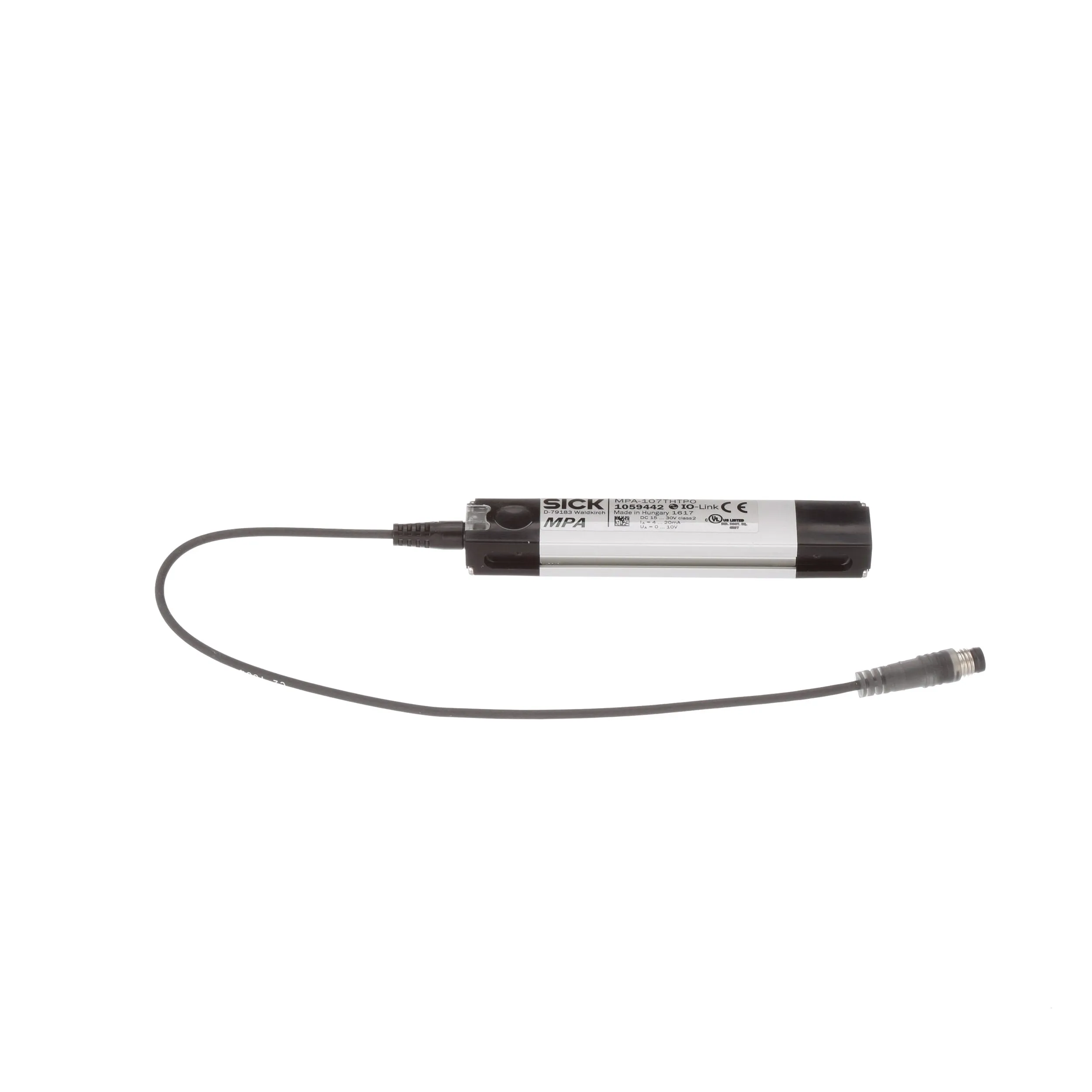

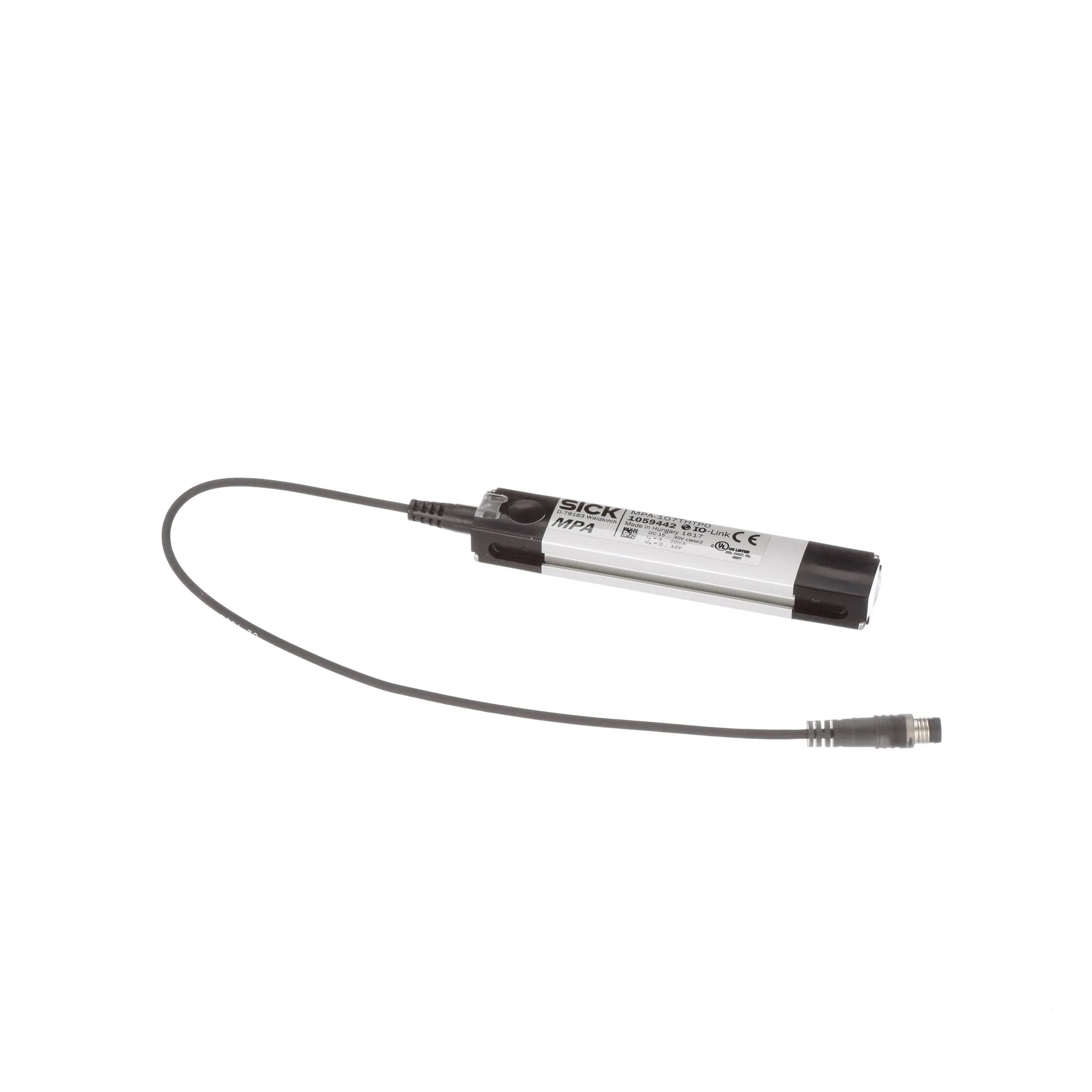

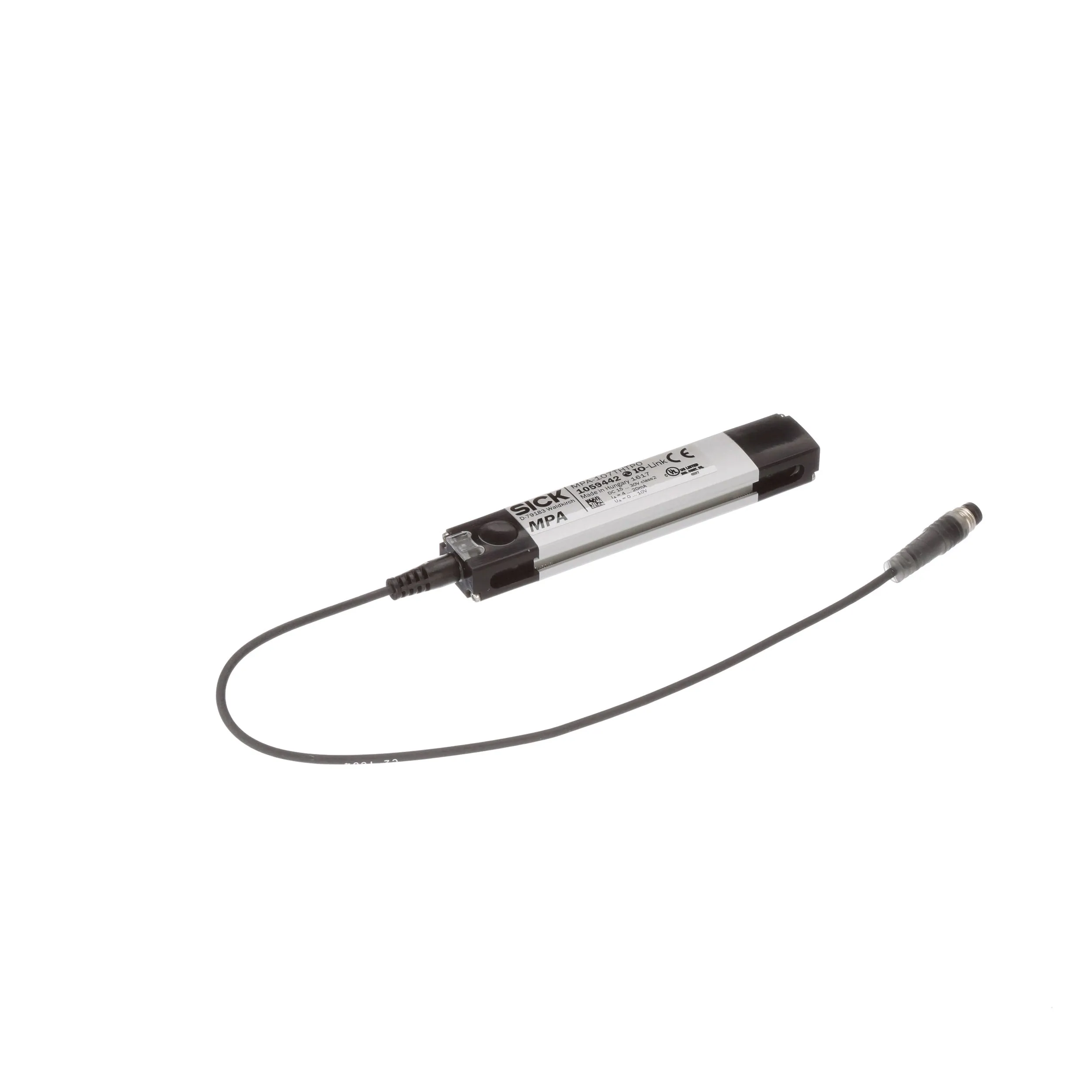

MPA - Precision and versatility up to 1,007 mm
The MPA is a precision magnetic positioning sensor with analog output, offering an economical alternative to potentiometers or other displacement sensors. The system is impressive with significantly reduced time and effort required for installation. The MPA is available for measured lengths between 107 mm to 1,007 mm and can be directly mounted on a host of pneumatic drives or deployed with a separate position transducer thanks to its universal housing with fastening adapters. An intuitive capacitive Teach Pad as well as the 4-color LED display means the sensor can be commissioned quickly and easily.
