Product Description
-
2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
-
Outputs max. 2MP (1920 × 1080) 25/30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max. IR distance: 40 m
-
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Abnormality detection: no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, Motion detection, video tampering, security exception
-
Supports max. 256 GB SD card
-
12V DC/PoE power support
-
IP67 protection
-
Function
-
Smart Codec
-
Motion Detection
-
Smart IR
-
Image Flip
-
Protection (IP67, wide voltage)

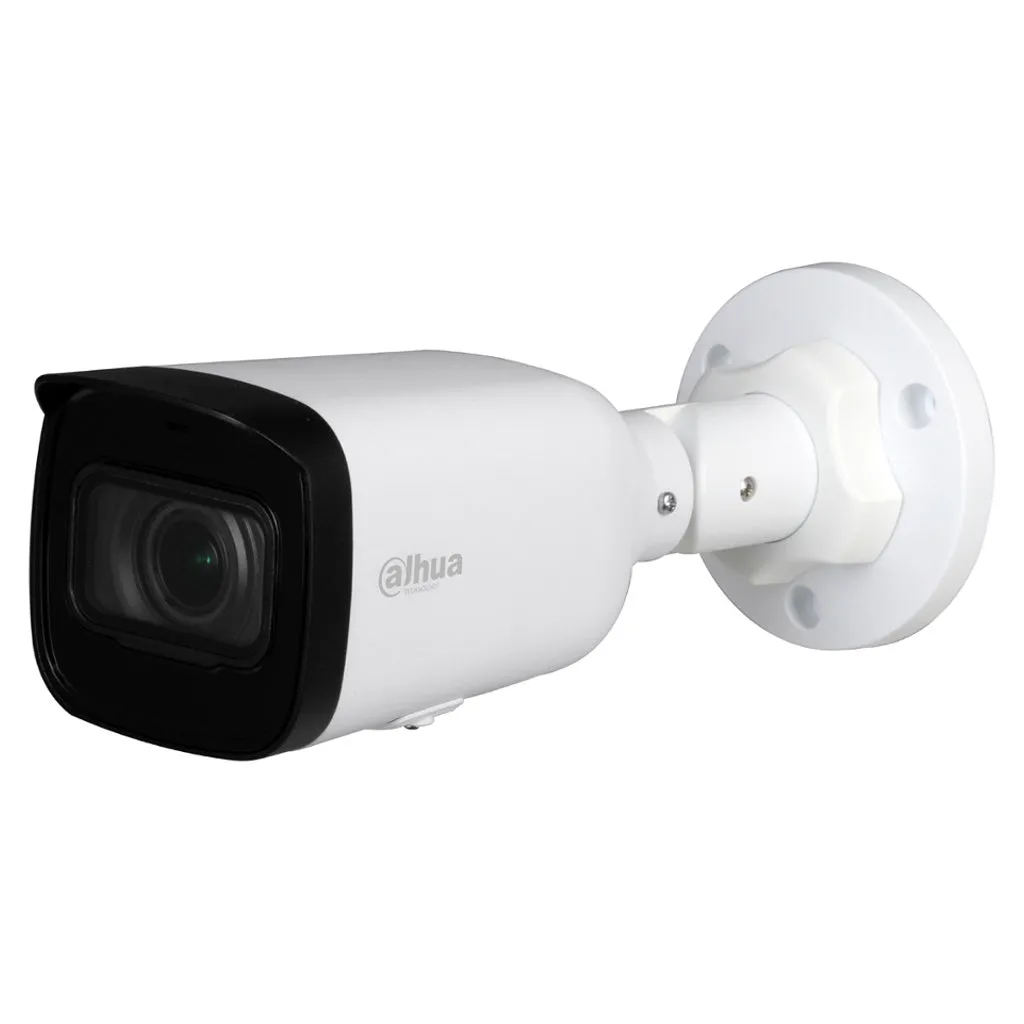

Product Specification
Brand |
Dahua |
||||
Product Type |
Bullet Camera |
||||
Series |
Entry |
||||
Product Code |
DH-IPC-HFW1230T1P-ZS-S4 |
||||
Camera | |||||
Image Sensor |
1/2.7" 2Megapixel progressive CMOS |
||||
Effective Pixels |
1920 (H) × 1080 (V) |
||||
Rom |
16 MB |
||||
Ram |
64 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
Min. Illumination |
0.008 Lux F1.7 |
||||
IR Distance |
50 m (164.0 ft) |
||||
IR On/Off Control |
Auto/Manual |
||||
IR Leds Number |
2 |
||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||
Lens | |||||
Lens Type |
Motorized vari-focal |
||||
Mount Type |
φ14 |
||||
Focal Length |
2.8 mm–12 mm |
||||
Max. Aperture |
F1.7 |
||||
Field Of View |
Pan: 106°–33° Tilt: 56°–19° Diagonal: 127°–38°" |
||||
IRIS Type |
Fixed |
||||
Close Focus Distance |
0.8 m (2.6 ft) |
||||
Dori Distance | |||||
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
44.0 M (144.4 Ft) |
17.6 m (57.7 ft) |
8.8 m (28.9 ft) |
4.4 m (14.4 ft) |
|
T |
153.1 M (502.3 Ft) |
61.2 m (200.8 ft) |
30.6 m (100.4 ft) |
15.3 m (50.2 ft) |
|
Smart Event | |||||
General Ivs Analytics |
Tripwire; intrusion |
||||
Video | |||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
||||
