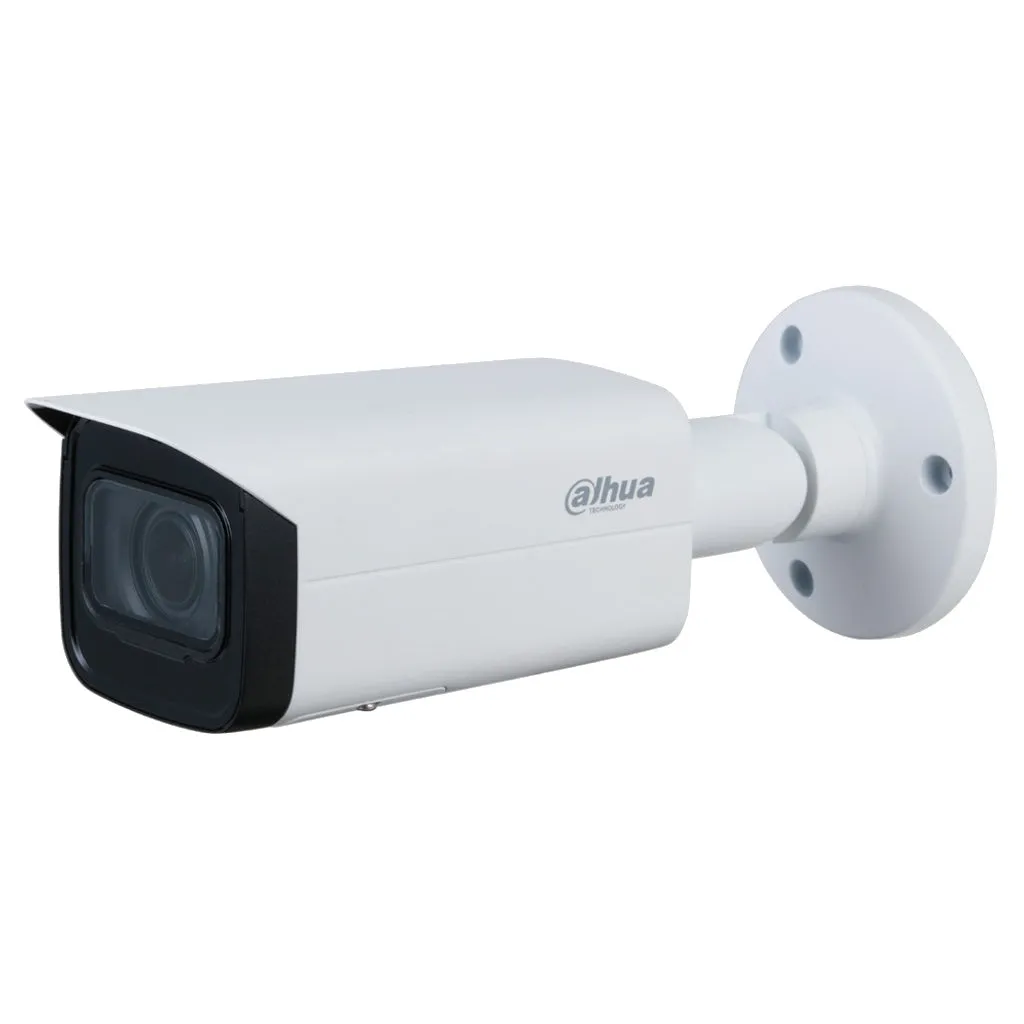

Product Description
-
4MP, 1/3” CMOS image sensor, low illuminance, high image definition
-
Outputs 4MP (2560 × 1440) 25/30 fps, and supports max. 4MP (2688 × 1520) 20 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max. IR distance: 50 m
-
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-
Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
-
Supports max. 256 GB SD card
-
12V DC/PoE power support
-
IP67 protection
-
Features
-
Smart (H.265 & H.264 )
-
Motion Detection
-
Wide Dynamic Range (WDR)
-
Smart IR
-
Protection (IP67, wide voltage)
Product Specification
Brand |
Dahua |
||||
Product Type |
Network Camera |
||||
Series |
Entry |
||||
Product Code |
DH-IPC-HFW1431TP-ZS-S4 |
||||
Camera | |||||
Image Sensor |
1/3 ”4Megapixel progressive CMOS |
||||
Effective Pixels |
2688 (H) ×1520 (V) |
||||
Rom |
128 MB |
||||
Ram |
128 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
Min. Illumination |
0.03 Lux F1.7 |
||||
IR Distance |
50 m (164.0 ft) |
||||
IR On/Off Control |
Auto/Manual |
||||
IR Leds Number |
2 |
||||
Pan/Tilt/Rotation Range |
Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360° |
||||
Lens | |||||
Lens Type |
Motorized vari-focal |
||||
Mount Type |
φ14 |
||||
Focal Length |
2.8 mm–12 mm |
||||
Max. Aperture |
F1.7 |
||||
Field Of View |
Horizontal: 98°–31° Vertical: 55°–18° Diagonal: 116°–36° |
||||
IRIS Type |
Fixed aperture |
||||
Close Focus Distance |
0.8 m (2.6 ft) |
||||
Dori Distance | |||||
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
66.0 M (183.7 Ft) |
26.4 m (73.5 ft) |
13.2 m (36.7 ft) |
6.6 m (18.4 ft) |
|
T |
200.0 M (656.2 Ft) |
80.0 m (262.5 ft) |
40.0m (131.2 ft) |
20.0 m (65.6 ft) |
|
Video | |||||
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
Smart Codec |
Yes |
||||
$
